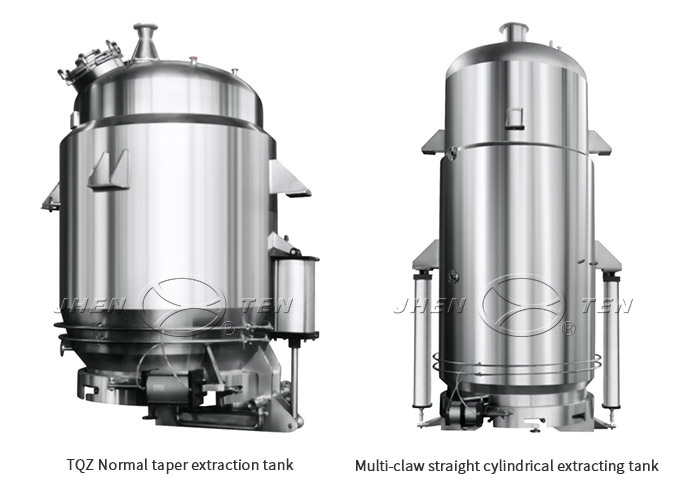

TQ Multifunctional extraction tank

Purpose

The equipment is applicable to the operations such as decoction of plants and animals at normal pressure and high pressure, warm soaking, hot reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery in pharmacy, biology, beverage, food, chemical industry, etc. It is especially suitable for dynamic extraction or counter-current extraction, with short operating time and a high liquid medicine content.

Accessories
The tank body is equipped with the CIP automatic rotary spray cleaning ball, thermometer, pressure gauge, explosion-proof sight lamp, sight glass, quick-open type feeding inlet and etc., ensuring easy operation and complying with the GMP standard. The contact part is made of imported 304 or 316L.

Complete set supply of the equipment
Extraction tank, defoamer, condenser, cooler, oil-water separator, filter, cylinder console and other accessories.

Rotary type & Large-diameter residue discharging doo

The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized, and more than 3Bar can be achieved in the swivel type product. It provides more selection for extracting technology. It can also meet some special technological requirements. With good safety and reliability, it has sufficient safety guarantee functions and the extracting tank has no leakage.

Filtering method
Cylinder side & bottom drain door filtration
For the liquid with high viscosity and difficult to be filtered, the tank side filtering method is adopted. The strainer is installed on the cylinder wall and the medicinal materials will not press and paste on the filter net, so the filter is more unobstructed. The filter is a long hole - shaped stainless steel mesh with laser glazing.
The bottom of the filter using two layers, lower support mesh, upper stainless steel mesh board, net board covered with 0.6×10mm long hole, compared with mat woven mesh, long hole mesh board is more difficult to block, filter unobstructed, stainless steel polishing durable for 6-8 years do not replace.

Technical parameters

Model	TQ-0.3	TQ-0.5	TQ-1	TQ-2	TQ-3	TQ-6	TQ-8	TQ-10
Volume（L）	300	500	1000	2000	3000	6000	8000	10000
Design pressure in jacket（Mpa）	0.3
Diameter of feeding port （mm）	300	300	400	400	400	500	500	500
Heating area（㎡）	1.5	2.4	3	4.7	6.5	10.5	13.8	16
Condensation area（㎡）	4	4	4	5.4	8	10	15	18
Cooling area （㎡）	0.25	0.4	1	1	1	2.2	2.2	3
Slag door diameter（mm）	600	600	800	1000	1200	1400	1500	1600
Steam consumption（kg/h）	150	200	285	346	570	718	903	1140
Weight of equipment（kg）	650	750	1000	1900	2400	3025	4030	5100

Note: The multi-function extraction lank can be combined into a dynamic extraction system after adding necessary equipment
